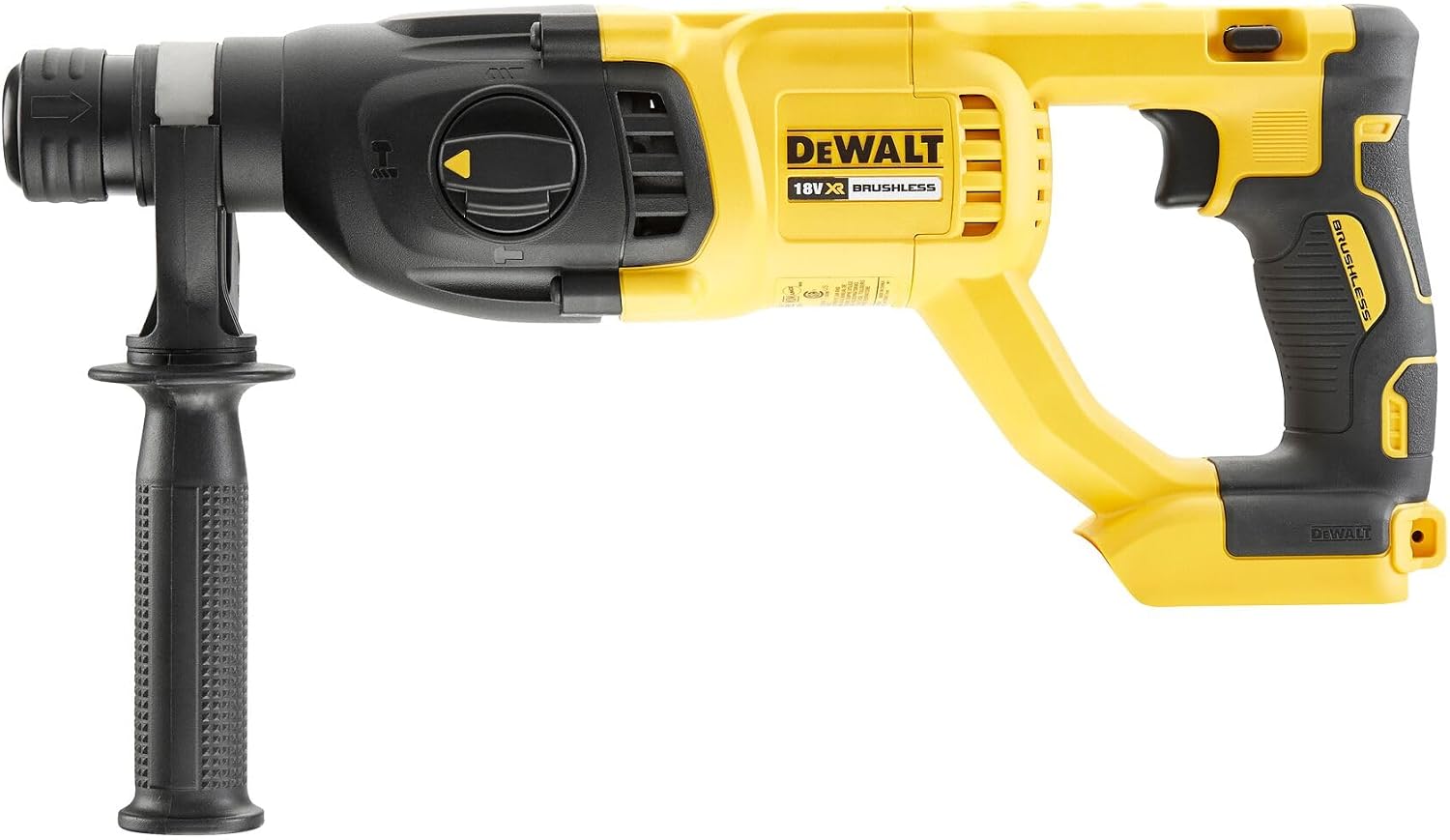

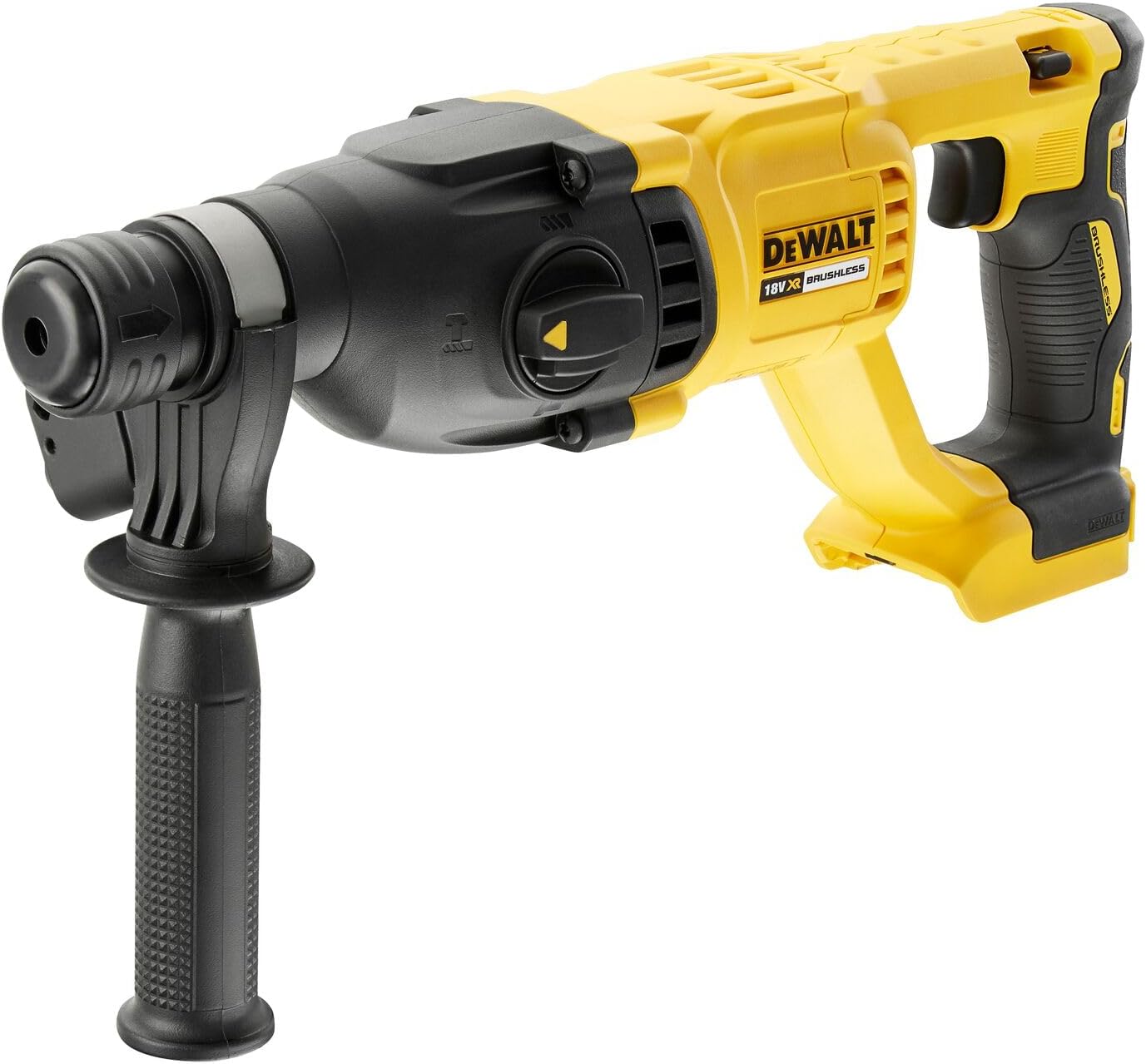

DEWALT 18V XR Brushless Cordless SDS-Plus Hammer Drill, Bare, DCH033N-XJ

Overview

Take on demanding drilling, hammer drilling and light chiselling jobs without the restriction of a mains cable with the DEWALT DCH033N-XJ 18V XR Brushless Cordless SDS-Plus Rotary Hammer Drill.

Designed for professional construction, installation, maintenance and renovation work, the DCH033 combines a highly efficient brushless motor, 2.0J single impact energy, SDS-Plus accessory system and three operating modes in a compact cordless body weighing approximately 2.27kg without battery.

The rotary hammer is specifically designed for drilling anchor and fixing holes into concrete, brick and masonry from approximately 4mm to 22mm, making it particularly useful for electricians, plumbers, builders, kitchen fitters, heating engineers and general tradespeople who regularly need to drill into structural materials.

Three operating functions provide greater flexibility than a conventional hammer drill:

• Rotary drilling
• Rotary hammer drilling
• Rotation-stop chiselling

Rotation-stop mode lets the DCH033 perform lighter chiselling work in materials such as plaster, tiles and render, while impact-stop mode provides conventional rotary drilling for compatible wood and metal applications.

The official DEWALT instruction manual specifies a variable no-load speed of up to 1,500rpm and an impact rate of up to 5,500 blows per minute, giving the tool the combination of rotary speed and hammer action required for efficient SDS-Plus drilling.

Maximum drilling capacities are officially rated at:

Steel: 13mm
Wood: 30mm
Concrete: 22mm
Soft-Brick Core Drilling: 50mm.

The brushless motor eliminates conventional carbon motor brushes, helping improve efficiency and reduce routine maintenance while making better use of compatible DEWALT 18V XR batteries. The DCH033 is compatible with DEWALT's 18V XR lithium-ion battery platform, allowing existing XR users to share batteries between many compatible tools.

Its SDS-Plus tool holder allows compatible drill bits and chisels to be changed quickly without requiring a conventional keyed chuck. The multi-position side handle improves control during higher-load drilling and chiselling applications. DEWALT's current official listing identifies the side handle as standard supplied equipment.

The DCH033 also includes useful professional features such as variable speed, forward/reverse control, electronic braking, mechanical clutch, all-metal gearing and thermal overload protection according to current UK retail specifications.

This exact DCH033N-XJ version is supplied as a bare unit, meaning the battery, charger and carry case are not included. It is therefore particularly well suited to customers who already own compatible DEWALT 18V XR batteries and want to expand their cordless tool collection without paying for duplicate batteries and chargers.

Key Features & Benefits

• Powerful 2.0J Impact Energy – Delivers the hammer force required for professional drilling into concrete, brick and masonry while retaining a relatively compact cordless design.
• 22mm Maximum Concrete Capacity – Designed for drilling anchor and fixing holes in masonry and concrete with SDS-Plus bits up to 22mm.
• Ideal 4–22mm Masonry Working Range – DEWALT specifically recommends the DCH033 for anchor and fixing holes in concrete, brick and masonry within this range.
• Brushless Motor – Improved motor efficiency, reduced maintenance requirements and better cordless runtime compared with conventional brushed designs.
• 18V XR Platform – Compatible with suitable DEWALT 18V XR lithium-ion batteries, allowing battery sharing across a large cordless tool ecosystem.
• Three Operating Modes – Drill, rotary hammer and chisel functions allow one tool to cover multiple applications.
• Rotation Stop for Chiselling – Stop spindle rotation and use compatible SDS-Plus chisels for light work in plaster, tiles and render.
• Impact Stop for Rotary Drilling – Disable hammer action for appropriate drilling into wood and metal.
• Up to 1,500rpm – Variable-speed operation provides controlled rotary performance for different applications.
• Up to 5,500bpm – High-frequency hammer action helps the SDS-Plus bit progress efficiently through suitable masonry.
• SDS-Plus Tool Holder – Rapid bit and chisel changes without requiring a conventional chuck key.
• 13mm Steel Capacity – Suitable for compatible metal drilling when hammer action is disabled.
• 30mm Wood Capacity – Handles substantial timber drilling applications with compatible adapters and accessories.
• 50mm Soft-Brick Core Capacity – Official DEWALT technical data specifies core drilling in soft brick up to approximately 50mm.
• Variable-Speed Trigger – Provides increased control when starting holes or drilling different materials.
• Forward & Reverse – Reverse operation helps with bit removal and appropriate fastening/drilling applications.
• Electronic Brake – Helps bring rotation to a stop quickly after releasing the trigger.
• Mechanical Clutch – Provides additional drivetrain protection and control during difficult drilling conditions.
• All-Metal Gearing – Designed for durability under demanding trade use.
• Thermal Overload Protection – Helps protect the brushless motor and electronics during demanding operation.
• Compact 383mm Body – DEWALT specifies an overall length of approximately 383mm.
• Approximately 2.27kg Tool-Only – Relatively manageable for a full-size SDS-Plus rotary hammer.
• Multi-Position Side Handle Included – Provides additional leverage and control while drilling or chiselling.
• Bare-Unit Package – Ideal for customers who already own DEWALT XR batteries and chargers.
