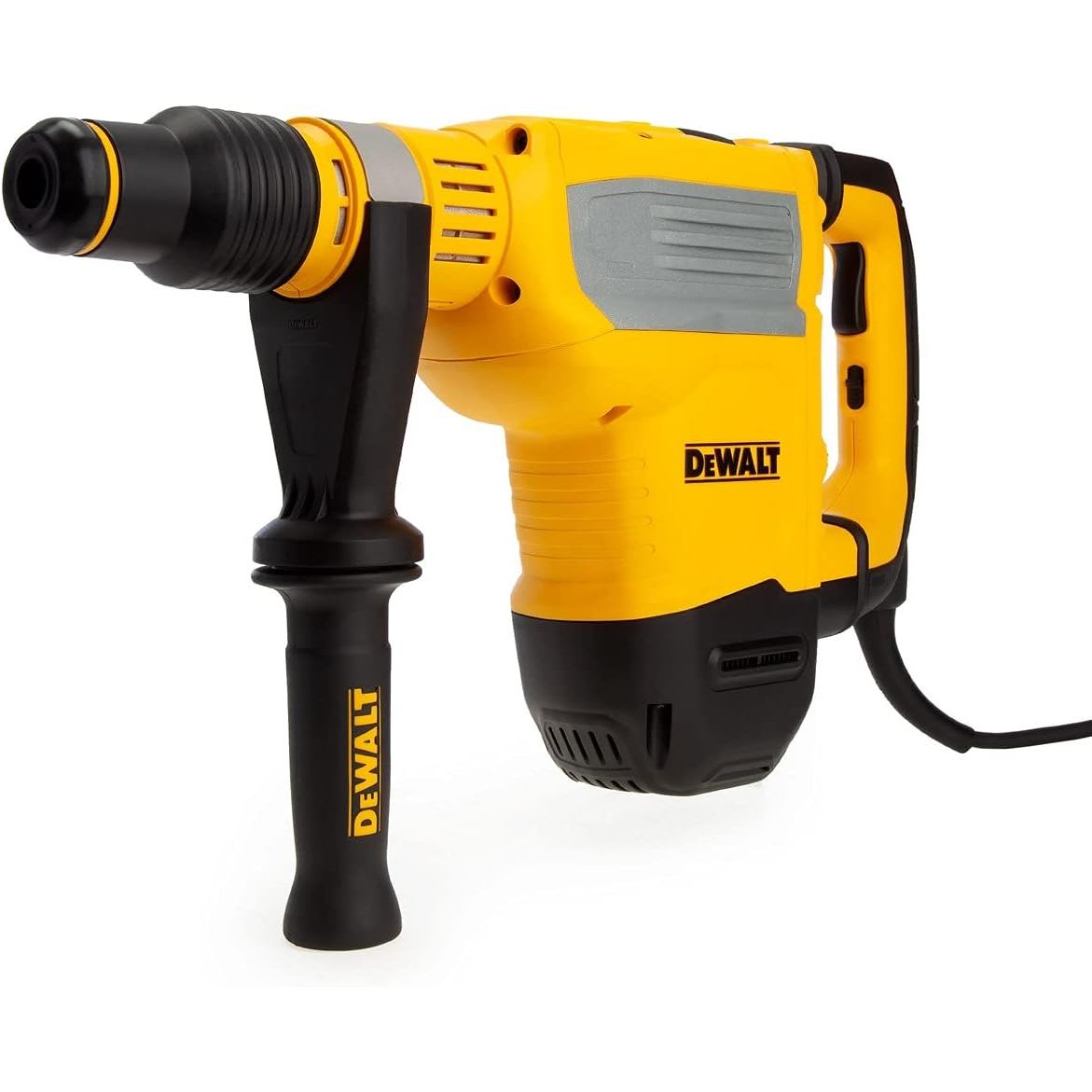

DEWALT D25614K-GB 45mm SDS-MAX Combination Hammer Drill 240V – 1350W, 10.5J Impact Energy, E-CLUTCH & Active Vibration Control

Overview

Take on demanding concrete drilling, anchor work and medium-duty chiselling with the DEWALT D25614K-GB 45mm SDS-MAX Combination Hammer Drill 240V. Designed for professional construction and installation work, this powerful corded hammer combines a 1350W motor with 10.5 joules of impact energy, giving it the strength required for hard concrete and masonry applications.

Its SDS-MAX system supports drilling from 12mm up to 45mm in concrete and masonry, while core drilling capability extends up to 150mm. Switch to rotation-stop mode and the same tool can also be used for chiselling, channel work and controlled demolition.

DEWALT's E-CLUTCH anti-rotation system helps protect the operator if a drill bit binds, while SHOCKS Active Vibration Control reduces vibration transmitted through the handles. Constant-speed electronics are designed to maintain performance under load, making this a capable choice for demanding professional work.

The exact UK 240V model is D25614K-GB, EAN 5035048722978.

Key Features & Benefits

• Break Through Tough Concrete Faster – A powerful 1350W motor and 10.5J impact energy provide the performance needed for heavy drilling and chiselling in demanding masonry and concrete.
• Drill Large Holes up to 45mm – The D25614K is designed for anchor, fixing and through-hole applications from 12–45mm diameter, making it suitable for major mechanical and construction installations.
• Core Drill up to 150mm – Its substantial drilling capability extends to 150mm core drilling, providing the capacity required for larger pipe, duct and conduit openings.
• Switch from Drilling to Chiselling – Rotation-stop mode with a lock-on switch converts the hammer into a powerful chiselling tool for removing tiles, chasing walls, breaking masonry and other medium-duty demolition work.
• Reduce Reaction if the Bit Jams – DEWALT's patented E-CLUTCH anti-rotation system detects a loss of control during a bind-up and reacts by stopping rotation, helping reduce sudden high-torque movement.
• Work with Less Vibration – The SHOCKS Active Vibration Control system reduces vibration transmitted through the handles compared with conventional rotary hammers without the technology.
• Maintain Performance Under Load – Constant-speed electronics help the hammer maintain operating speed when drilling into tougher material rather than dramatically slowing as resistance increases.
• Fine-Tune the Tool to the Application – Electronic speed and impact-energy control allows performance to be reduced for smaller drill bits or lighter material where maximum impact energy would be unnecessary.
• Reach Confined Areas More Easily – DEWALT's compact, slim-line housing is designed to improve control and give better access in restricted construction environments.
• Know When Maintenance Is Due – Integrated brush-wear and service indicators provide clear maintenance information, helping reduce unexpected downtime.
• Track Valuable Tools More Easily – The D25614K is Tool Connect Tag Ready, allowing a compatible DEWALT Tool Connect tag to be fitted for asset-management purposes. Tag sold separately.
• Connect to Compatible Dust Extraction – The hammer supports DEWALT's compatible Wireless Tool Control ecosystem, helping coordinate operation with suitable dust extraction equipment.

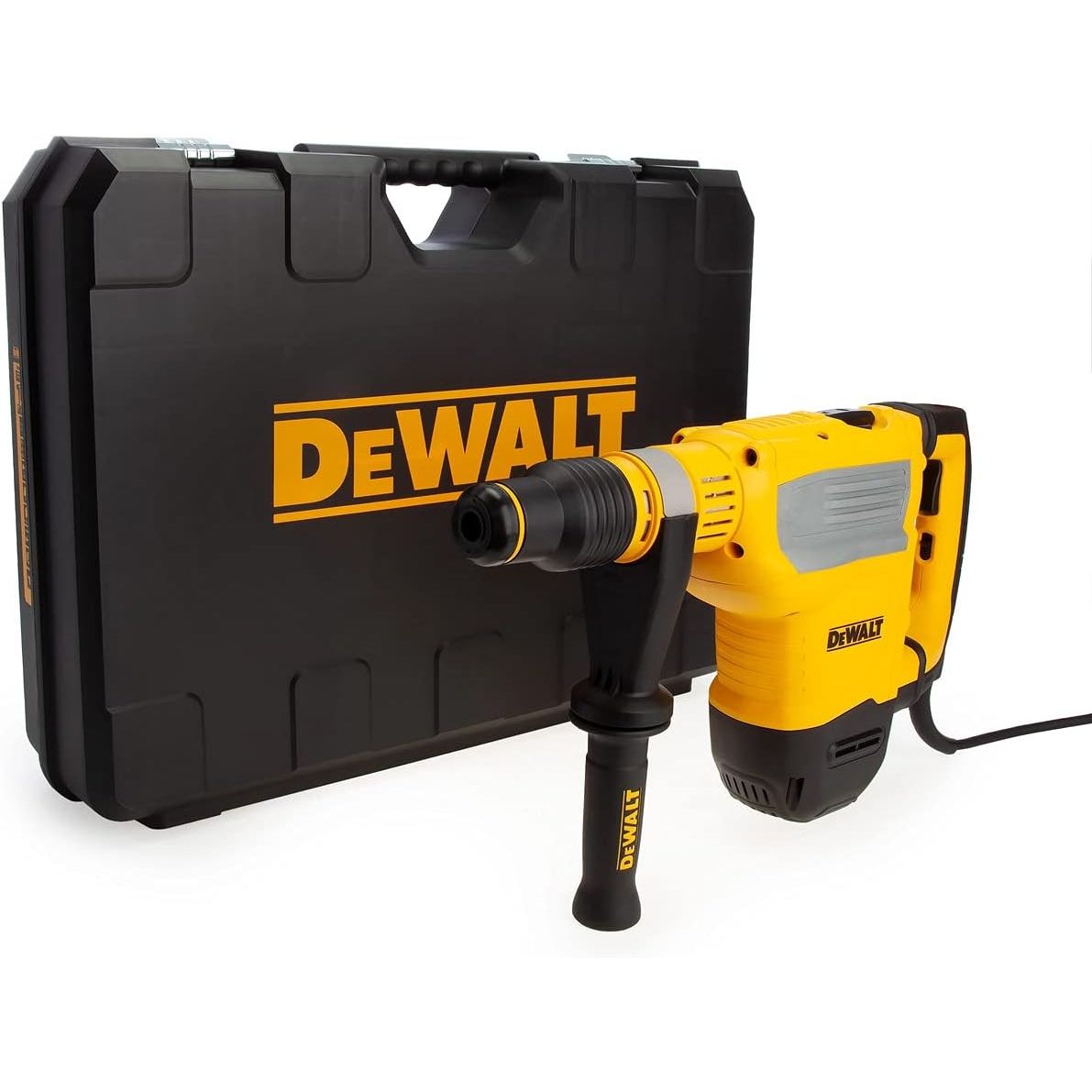

• Store and Transport It Safely – A heavy-duty carrying case is supplied, helping protect the hammer and keep the side handle and tool together between jobsites.

Why Choose This Product

The DEWALT D25614K-GB is built for tradespeople who need substantially more drilling and chiselling performance than a conventional SDS-Plus machine can provide.

Its combination of 10.5J impact energy, 45mm drilling capacity and 150mm core-drilling capability makes it particularly well suited to structural installation work, large anchor holes, penetrations for services and demanding concrete drilling.

The performance is matched by important operator-control features. The E-CLUTCH system is designed to respond if the tool suddenly binds, while Active Vibration Control keeps drilling vibration to approximately 8.9m/s² and chiselling vibration to around 9m/s².

It also remains versatile. Once drilling work is complete, rotation-stop mode allows the machine to be used for chiselling and lighter demolition, reducing the need to carry a completely separate tool for many everyday site applications.

For professionals working regularly in concrete, blockwork and masonry, the D25614K offers a strong balance of drilling power, chiselling capability, operator protection and corded reliability.

Specifications
