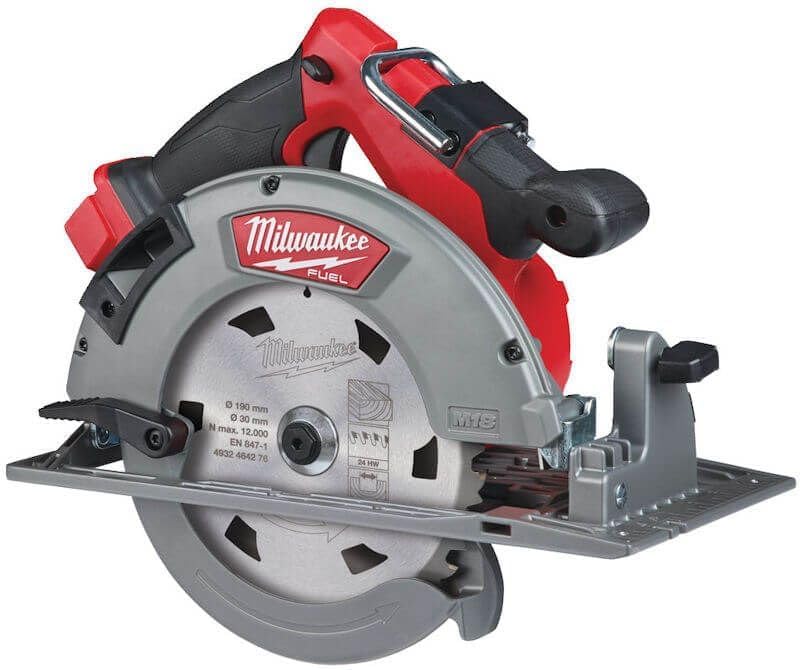

Milwaukee M18 FUEL™ Guide Rail Compatible Circular Saw – 190mm, 68mm Cut, 6000rpm – M18 FCS66GR3

Overview

Deliver fast, straight and accurate cuts on site with the Milwaukee M18 FUEL™ Guide Rail Compatible Circular Saw, model M18 FCS66GR3.

Built for professional carpenters, joiners, remodelers and general construction work, this high-performance 18V circular saw combines Milwaukee’s POWERSTATE™ brushless motor, REDLINK PLUS™ electronics and M18™ battery platform with a robust 190mm cutting system.

The saw maintains up to 6,000rpm through demanding rip cuts and provides a maximum cutting depth of 68mm at 90°, enough to cut through a stack of three 22mm OSB sheets in one pass.

Its magnesium base is designed to connect directly with compatible Milwaukee guide rails, allowing long, straight cuts through sheet materials with significantly less setup than using a separate rail adaptor.

With a 50° bevel range, electric blade brake, integrated LED, dust blower, DEK26 extraction adaptor and rafter hook, the M18 FCS66GR3 is designed around demanding everyday site use.

Key Features & Benefits

• Fast Professional Cutting – 6,000rpm
  The high-speed brushless drive is engineered to maintain approximately 6,000rpm under load, helping produce faster rip and cross cuts through timber and sheet materials.
• Cut Up to 68mm Deep – 190mm Blade
  The 190mm blade provides a maximum cutting depth of 68mm at 90°, giving the saw the capacity required for substantial framing timber, panels and stacked sheet material.
• Cut Three 22mm OSB Boards at Once
  Milwaukee specifically highlights the saw’s ability to cut through three stacked 22mm OSB sheets, helping improve productivity on repetitive panel work.
• Straight, Repeatable Cuts – Direct Guide Rail Compatibility
  The magnesium shoe connects directly to compatible Milwaukee guide rails, helping produce long, controlled cuts through plywood, OSB, MDF and other sheet materials.
• Same Cut Line Through Bevel Adjustments
  Milwaukee designed the rail-compatible shoe to help maintain a consistent cut line as the bevel angle changes, reducing measuring and setup time.
• Wide 50° Bevel Capacity
  Adjust the saw from straight cutting through to a maximum 50° bevel, giving you flexibility for roofing, framing, joinery and angled construction cuts.
• 53mm Cutting Depth at 45°
  Even at a 45° bevel, the saw maintains a maximum cutting depth of approximately 53mm when used without a guide rail.
• 64mm Cut While Using a Guide Rail
  When mounted on a compatible guide rail, maximum cutting depth remains approximately 64mm at 90° and 49mm at 45°, preserving substantial cutting capacity while gaining rail-guided accuracy.
• POWERSTATE™ Brushless Motor
  Milwaukee’s brushless motor design eliminates conventional carbon brushes while optimising power delivery, runtime and durability for demanding cordless applications.
• REDLINK PLUS™ Intelligence
  Integrated electronics coordinate the tool and battery to manage performance and protection during demanding cutting operations.
• Optimised for M18™ FORGE™ Batteries
  The saw is specifically optimised around Milwaukee’s high-output FORGE battery technology for maximum available performance, while remaining compatible with the wider M18 battery platform.
• Excellent Runtime with a 12.0Ah FORGE Battery
  Milwaukee states the saw can make up to 700 cuts through 90 × 45mm pine stud or approximately 64 linear metres through 42mm pine panel on one M18 FORGE 12.0Ah battery charge under its test conditions.
• Integrated Dust Blower
  A built-in blower helps remove sawdust from the cut line so markings remain visible as you work.
• DEK26 Dust Extraction Adaptor
  The supplied DEK26 adaptor connects directly with compatible Milwaukee dust extractors for improved dust management.
• Integrated LED Work Light
  The built-in LED illuminates the cutting area, particularly useful inside darker rooms and partially completed buildings.
• Electric Blade Brake
  Milwaukee equips the FCS66GR3 with an electric brake designed to stop blade rotation quickly after releasing the trigger, improving control between cuts.
• Durable Magnesium Construction
  Magnesium guards and shoe components help reduce unnecessary weight while maintaining the durability expected for regular job-site use.
• Integrated Metal Rafter Hook
  The heavy-duty rafter hook provides a practical way to hang the saw securely between cuts when working on framing and elevated structures.
• Rip Fence Included
  Milwaukee supplies a parallel/rip fence for controlled straight-line cutting when a full guide rail is not required.

Why Choose This Product

The Milwaukee M18 FCS66GR3 sits between a conventional cordless circular saw and a dedicated track saw.

For everyday framing and timber cutting, it behaves like a powerful 190mm circular saw with a deep 68mm cutting capacity and 6,000rpm blade speed. When precision sheet cutting is required, its magnesium shoe can run directly on Milwaukee guide rails.

That flexibility means tradespeople do not necessarily need to carry separate circular and rail-saw setups for every job.

The FUEL platform also brings Milwaukee’s brushless motor and electronic management system, while FORGE optimisation lets the saw take advantage of the manufacturer’s higher-performance M18 battery technology.

For professional framing, sheet-material installation, first-fix carpentry, roofing and general construction, the result is a versatile cordless saw designed for both speed and accuracy.

Specifications
